Optical amplification is one of the most critical technologies for modern high-speed communications and advanced photonic systems. The magnification factor—also called amplification factor or gain factor—is the fundamental metric for how well an optical amplifier boosts input light signal power. This article looks at the theoretical foundations, practical uses, and emerging developments in optical amplifier magnification technologies.
Mathematically, an optical amplifier’s magnification factor is the ratio of output to input optical power. This simple idea covers complex physics like stimulated emission, population inversion, and nonlinear optical interactions. For example, an factor of 1,000 turns a 1 milliwatt input signal into 1 watt output.

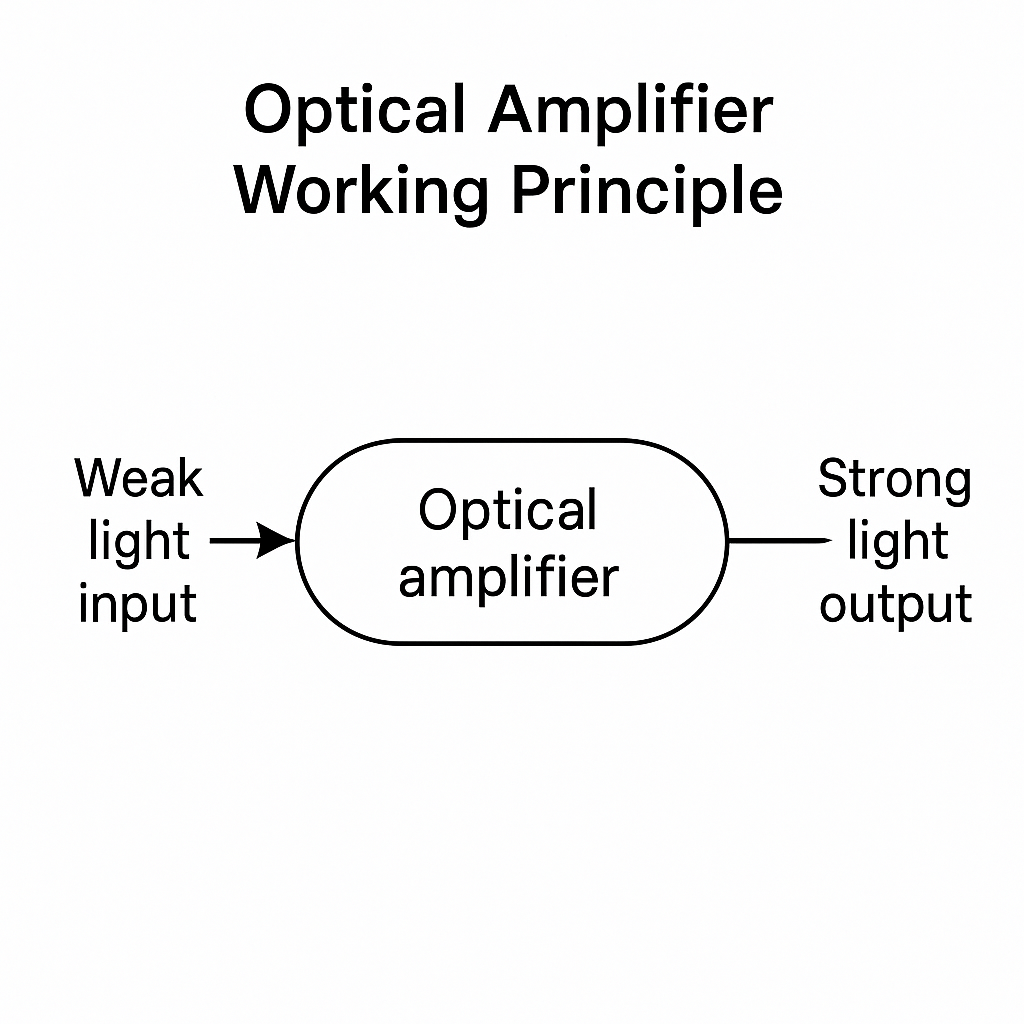

Optical amplification works via stimulated emission—the same principle as lasers. When photons hit excited atoms or ions in an inverted population, they trigger more photons that match the original signal. This lets amplifiers boost signal strength while keeping the input light’s phase and frequency intact.
Modern optical amplifiers have magnification factors from 10-100 (10-20 dB) up to over 10,000 (40 dB) in high-power systems. The right level depends on application needs—like transmission distance, signal quality, and power handling.
Erbium-doped fiber amplifiers (EDFAs) are the most used in telecom. They usually give a 1,000x (30 dB) magnification factor with great noise performance on 1550 nm.
Semiconductor optical amplifiers (SOAs) are compact and fast. They hit around 316x (25 dB) magnification and work with electronic controls. They’re great for fast switching or modulation—though they used to be sensitive to polarization, recent research fixed that.
Ytterbium-doped fiber amplifiers (YDFAs) lead in high-power uses. They reach 10,000x (40 dB) magnification at 1030-1100 nm. Their power handling makes them key for industrial laser processing and scientific research.
Optical parametric amplifiers (OPAs) have unique wavelength tunability. They hit around 3,162x (35 dB) magnification and amplify signals from visible to mid-infrared. Their versatility comes from nonlinear crystals engineered for specific phase-matching.
Laser-based amplifiers’ magnification factors depend on several linked parameters—all need careful optimization for best performance. Input light wavelength directly affects the gain medium’s emission cross-section. Peak amplification happens at wavelengths matching optimal electronic transitions. Beam polarization can change gain on some media, thanks to polarization-dependent absorption and emission.
The laser gain medium’s characteristics—like active ion concentration, host material, and crystal field effects—fundamentally set the maximum magnification factor. Excitation level (controlled by pump power and population inversion) directly links to available gain and how much magnification you can get.
Optical parametric amplifiers have different factors affecting magnification. Nonlinear crystal length directly changes the interaction length for amplification—longer crystals usually give higher gain until other limits kick in. Pump intensity needs careful control: maximize efficiency without damaging the medium.
Beam diameter and how well pump, signal, and idler beams overlap spatially are key for effective nonlinear interaction and magnification. Phase-matching—set by crystal orientation, temperature, and wavelengths—must be exact for optimal performance.
When amplifying intense optical pulses, the magnification factor acts dynamically—this affects system performance a lot. Gain saturation happens when the signal power is so big it depletes the gain medium’s population inversion. This reduces amplification for the rest of the pulse.
This phenomenon changes based on how long the pulse is compared to the gain medium’s recovery time. For ultrashort pulses (shorter than the upper-state lifetime), saturation depends on saturation energy—not power. In these cases, effective magnification is output energy divided by input energy—this gives a more accurate picture.
Gain saturation is described by G = G₀/(1 + P/P_sat). Here, G₀ is small-signal gain, P is signal power, and P_sat is saturation power. This shows how magnification decreases as input power goes up—eventually, more power gives almost no extra amplification.
The logarithmic decibel scale is handy for expressing large magnification factors. It also makes calculations for cascaded amplifiers easier. To convert linear magnification to dB gain, use: Gain (dB) = 10 × log₁₀(Magnification Factor).
This logarithmic way of showing gain has practical benefits for system design. Cascaded amplifier gains add up in dB—instead of multiplying linear factors. Also, human perception of signal strength is logarithmic, so dB measurements are more intuitive for operators and engineers.
Common optical amplification references: 3 dB is double the power (2x), 10 dB is 10x, 30 dB is 1,000x. These benchmarks let you do quick mental math for system analysis and troubleshooting.
Optical amplifiers have three main jobs in fiber-optic networks—each needs different magnification optimization. Power amplifiers boost signals before long-haul fiber. They usually need 1,000-10,000x (30-40 dB) to beat transmission losses.
Line amplifiers are placed at intervals along transmission paths. They restore signals to make up for fiber attenuation—usually 100-1,000x (20-30 dB). Preamplifiers boost weak signals before detection to improve receiver sensitivity. They need low noise and 100-1,000x (20-30 dB).
Wavelength division multiplexing (WDM) systems pushed development of broadband amplifiers. These can amplify multiple wavelength channels at once. Modern EDFAs give flat gain over 40 nm in the C-band. This lets them amplify dozens of data channels with consistent magnification.
Quantum dot amplifiers are a promising new area in optical amplification. They have ultrafast gain recovery and lower noise than conventional bulk or quantum well devices. They hit around 63x (18 dB) magnification and work better for high-speed signal processing.
Adding AI and machine learning to amplifier control systems lets them dynamically optimize magnification for changing network conditions. Advanced monitors can predict gain saturation and adjust pump power automatically. This keeps amplification optimal even when traffic loads change.
Research into new gain media is expanding optical amplifiers’ wavelength ranges and power handling. Thulium-doped fiber amplifiers amplify in the eye-safe 2 μm region—100x (20 dB). This opens up new uses in atmospheric communications and medical lasers.
The magnification factor is the fundamental performance metric for optical amplifiers. It covers the complex physics that let amplifiers boost signals for different uses. To optimize system design, you need to understand what affects amplification—like gain medium properties and nonlinear crystal characteristics.
Modern optical amplifiers have magnification factors from 10x up to 100,000x—five orders of magnitude. Choosing the right amplifier and settings means balancing amplification needs with noise, power use, and system complexity.
As optical communication systems move to higher data rates and longer distances, amplifier tech innovations will be key for next-gen photonic networks. Quantum dot amplifiers, AI control, and new gain media are being developed—they’ll expand what optical amplification can do.
