On the fascinating world of laser physics, gain medium is the core component of laser operation. It turns ordinary light into extraordinary coherent beams, powering everything from industrial cutting to delicate medical procedures. Understanding how these materials work helps appreciate the engineering behind modern laser systems.
Laser gain medium is fundamentally different from ordinary optical materials. Passive elements like lenses and mirrors simply redirect or focus light, but an gain medium actively amplifies light through stimulated emission. Think of it as the difference between an megaphone that redirects your voice and a amplifier that boosts signal strength.
The gain medium’s key job? Compensate for energy losses as light bounces between mirrors in a laser’s optical cavity. Without this amplification, light would fade instead of building into the intense, coherent beam we call laser light.
For any gain medium to amplify light, it must first get energy through pumping. This external input is essential—because the medium adds energy to light, and that energy has to come from somewhere.
The most direct approach is electrical pumping, where current flows through an material. This works great for semiconductors, where electrical energy directly excites electrons to an higher energy states. Its efficiency and precise control make it ideal for applications needing rapid modulation or compact designs.
Optical pumping uses light from external sources—like flash lamps or other lasers—to energize an gain medium. Interesting fact: Pump light usually has a shorter wavelength (an higher energy) than the laser output. This energy difference, called the quantum defect, sets the fundamental efficiency limit of the system.
Lots of materials can serve as laser gain media, each with unique advantages for specific applications.
Direct bandgap semiconductors like gallium arsenide (GaAs) and indium gallium arsenide (InGaAs) are among the most commercially successful. They use quantum well structures, where electrons and holes are confined in thin layers. Their electrical pumping capability enables compact, efficient designs—perfect for telecommunications and consumer electronics.
Crystalline materials doped with rare earth ions are workhorses of high-power laser systems. Materials like neodymium-doped yttrium aluminum garnet (Nd:YAG) and ytterbium-doped YAG (Yb:YAG) offer exceptional beam quality and power-handling capabilities. They can be used in bulk for high-power apps or drawn into optical fibers for distributed amplification.
Doping involves adding laser-active ions—usually trivalent rare earth elements—into the host crystal structure. This creates the precise energy level structure needed for efficient operation while keeping the host’s excellent optical and thermal properties.
Ceramic gain media offer many of the same benefits as single crystals but with easier manufacturing. These polycrystalline materials can be made in larger sizes and more complex shapes than traditional crystals. This makes them attractive for high-power applications where large apertures are needed.
Dye lasers use organic molecules dissolved in liquid solvents as their gain medium. Their biggest advantage? Broad tuning range—change the dye or adjust the optical cavity, and the output wavelength can vary across a wide spectrum. This flexibility makes them invaluable for spectroscopy and research where precise wavelength control is key.
Gas lasers rely on electrical discharges to create population inversions in gaseous media. Carbon dioxide (CO₂) lasers excel at high-power infrared applications, while helium-neon (He-Ne) lasers provide extremely stable, narrow-linewidth output. Excimer lasers use gas mixtures to generate ultraviolet wavelengths impossible with other media.
Some gain media operate through unconventional mechanisms. Chemical lasers convert chemical energy directly into light, while free-electron lasers use electron beams and magnetic fields to generate coherent radiation. These specialized systems often offer unique capabilities unavailable through conventional methods.
The fundamental process behind most laser gain media is stimulated emission—first described theoretically by Albert Einstein in 1917. This process requires population inversion—a state where more atoms are in excited energy states than in lower ones. When a photon hits an excited atom, it triggers the emission of a second, identical photon.
The difference between three-level and four-level laser systems impacts efficiency and operation. Three-level systems use the ground state as the lower laser level, requiring higher pump powers to achieve inversion. Four-level systems include an intermediate level above the ground state, allowing more efficient operation.
Some laser systems use stimulated Raman scattering as their primary amplification mechanism. In this process, high-energy pump photons convert to lower-energy signal photons, with the energy difference transferred to molecular vibrations (phonons). This approach offers remarkable wavelength flexibility—tune the output frequency by selecting the right pump wavelength.
Raman fiber lasers are particularly important for telecommunications. Their ability to provide distributed amplification across long fiber runs offers significant advantages.
As input power increases, gain media eventually reach a saturation point where amplification capability decreases. This happens because excited atoms or molecules are depleted faster than the pumping process can replenish them. Understanding and managing gain saturation is crucial for designing high-power laser systems and pulse amplifiers.
One of the biggest challenges in high-power laser design is managing thermal effects. When pump energy is absorbed, a large portion converts to heat instead of useful laser output. This heating causes several problems.

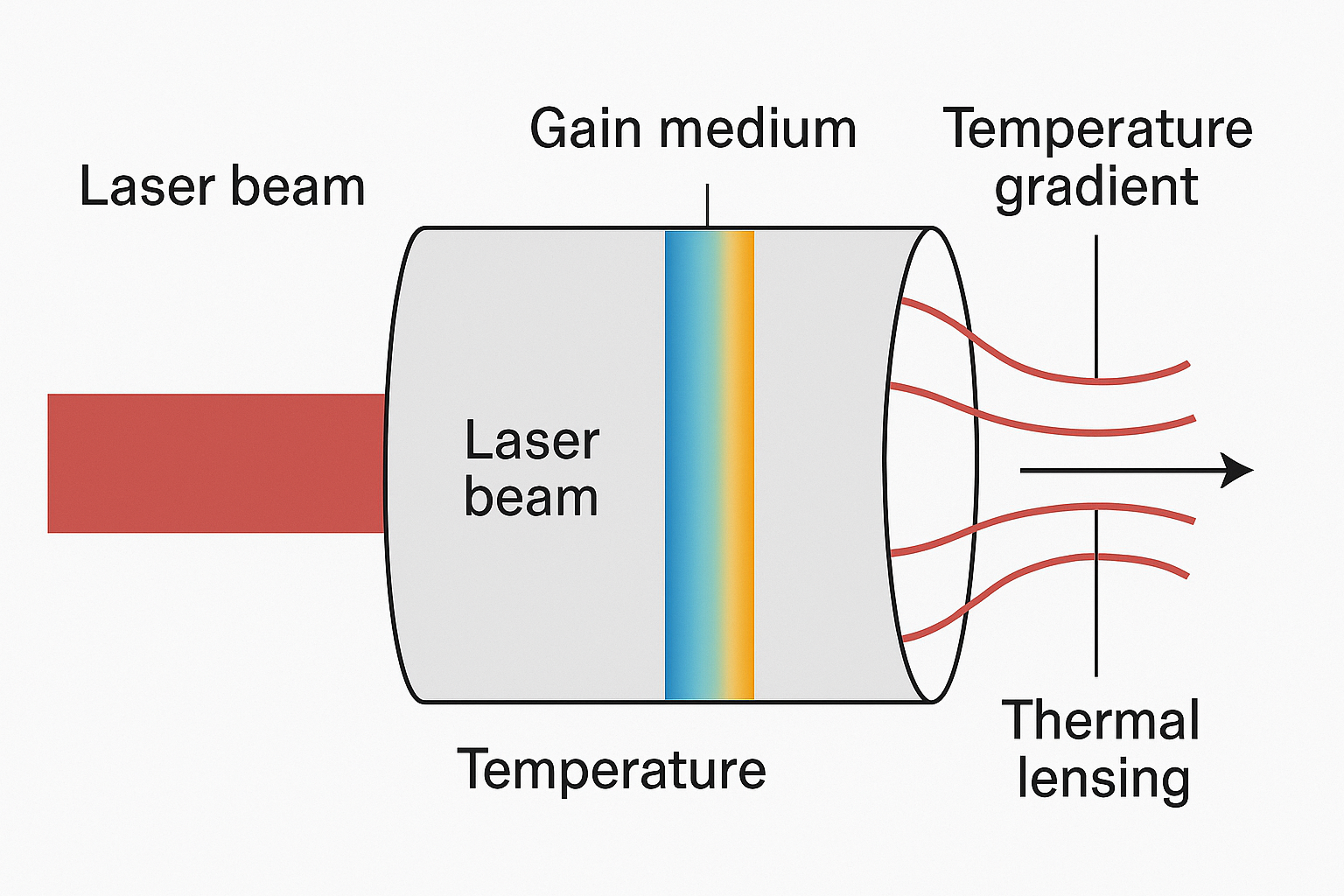

Thermal lensing occurs when temperature gradients in the gain medium create refractive index variations. The heated material acts like a lens, distorting the laser beam and potentially causing instability. In extreme cases, thermal stress can physically damage the medium.
Managing thermal effects requires sophisticated engineering—advanced cooling systems, careful thermal design, and sometimes specialized optical elements that compensate for thermal lensing.
The concentration of laser-active ions in doped gain media needs careful optimization. Higher doping concentrations can improve pump absorption efficiency but may lead to harmful effects like concentration quenching—where ions interact unfavorably with each other. Finding the right balance is key to maximizing laser performance.
Different applications demand specific wavelength ranges, so gain media must have appropriate energy level structures. Industrial cutting often uses infrared wavelengths for maximum power, while medical applications may require visible or ultraviolet output for specific tissue interactions.
The quantum defect—the energy difference between pump and laser photons—fundamentally limits the theoretical efficiency of any laser system. Materials with smaller quantum defects can achieve higher efficiency but often come with other constraints, like quasi-three-level behavior that complicates design.
High-power applications place severe demands on gain media. Materials must have excellent thermal conductivity to remove waste heat efficiently, low thermal expansion to minimize stress, and sufficient mechanical strength to withstand thermal cycling. The thermo-optic coefficient—how refractive index changes with temperature—directly impacts thermal lensing severity.
Gain media must maintain exceptional optical quality throughout their volume. This includes minimal absorption at the operating wavelength, low scatter from inclusions or defects, and uniform refractive index distribution. For solid-state media, the ability to be fabricated and polished to high optical quality is essential.
Laser engineers constantly face competing requirements when selecting gain media. Several fundamental trade-offs shape these decisions:
Efficiency versus Bandwidth: Materials with high efficiency often have narrow gain bandwidths, limiting tunability and ultrashort pulse capability. Conversely, broad-bandwidth materials typically sacrifice some efficiency.
Power versus Beam Quality: High-power operation often requires larger mode volumes, which can degrade beam quality. Managing this trade-off requires careful optical design and sometimes active beam correction.
Thermal Performance versus Size: Compact designs concentrate heat in small volumes, exacerbating thermal effects. Larger systems can manage heat better but sacrifice portability and integration advantages.
Cost versus Performance: Exotic materials and sophisticated fabrication techniques can provide superior performance but at significantly higher costs. Commercial applications often require balancing performance with economic constraints.
Industrial laser systems prioritize power, efficiency, and reliability. Fiber lasers using ytterbium-doped silica have become dominant due to their excellent power scaling, beam quality, and minimal maintenance. Carbon dioxide lasers remain important for applications requiring high power at infrared wavelengths.
Medical applications often require specific wavelengths optimized for particular tissue interactions. Precision and safety considerations may outweigh pure efficiency concerns, leading to the selection of well-characterized, stable gain media even if more efficient alternatives exist.
Semiconductor gain media dominate telecommunications due to their compact size, electrical control capability, and excellent integration with electronic systems. Erbium-doped fiber amplifiers provide distributed amplification for long-haul communications.
Research applications often prioritize flexibility and unique capabilities over efficiency or cost. Titanium-sapphire lasers remain popular for ultrafast applications despite their complexity, while dye lasers continue serving specialized spectroscopy needs.
The field of laser gain media continues evolving rapidly. Advanced manufacturing techniques enable new material compositions and structures previously impossible to create. Nanostructured materials offer the potential for enhanced efficiency and novel operating characteristics.
Hybrid systems combining multiple gain mechanisms or materials may provide capabilities unavailable from single-medium approaches. Advanced thermal management techniques—including active cooling and thermally optimized designs—promise to enable higher power operation.
Laser gain media are among the most critical and sophisticated components in modern photonics technology. From the compact semiconductor lasers in our everyday devices to the massive industrial systems that shape modern manufacturing, these materials enable the transformation of ordinary light into the extraordinary phenomenon of laser radiation.
Understanding the principles governing gain media operation—from the fundamental physics of stimulated emission to the practical engineering challenges of thermal management—provides insight into both current laser capabilities and future possibilities. As materials science and manufacturing techniques continue advancing, we can expect even more capable and efficient laser systems to emerge, further expanding the already impressive range of laser applications in science, industry, and daily life.
The careful selection and optimization of gain media remain central to laser design, requiring deep understanding of the complex interactions between material properties, operating conditions, and application requirements. This complexity, while challenging, also provides the rich variety of laser systems that continue to enable new technologies and scientific discoveries.
