Modern laser technology is one of most significant achievements on applied quantum physics. It turns theoretical concepts of stimulated emission into practical devices. These devices revolutionize countless fields. To understand how lasers gain their unique properties, we examine quantum mechanical processes governing light - matter interactions. We also look at engineering solutions harnessing these phenomena for practical uses.
Laser light generation relies on an quantum mechanical process. Albert Einstein first described it in 1917. It’s called stimulated emission. This process occurs when an atom or ion in an excited energy state meets a photon. The photon’s energy matches exactly the difference between the excited state and a lower energy level. Unlike spontaneous emission — where excited atoms randomly release photons in arbitrary directions — stimulated emission produces photons identical to the triggering photon. They match in frequency, phase, polarization and direction of propagation.
Three fundamental processes govern laser operation: stimulated absorption, spontaneous emission and stimulated emission. When atoms absorb energy from external sources, electrons move from ground states to higher energy levels through stimulated absorption. These excited electrons are unstable. They eventually return to lower energy states. This happens through spontaneous emission or the controlled process of stimulated emission enabling laser action.
For laser action to occur, an fundamental condition called population inversion must be achieved. Under normal thermal equilibrium, more atoms exist in lower energy states than in higher ones. This follows the Boltzmann distribution. But laser operation needs the opposite: more atoms must occupy the upper laser level than the lower laser level. This population inversion doesn’t occur naturally. It must be created through external energy input, a process called pumping.
Pumping transfers energy to the laser medium through various methods. These include optical pumping with intense light sources, electrical pumping through current injection or chemical pumping through exothermic reactions. Once population inversion is established, the probability of stimulated emission exceeds that of absorption. This enables net optical amplification.
Laser systems are classified based on the number of energy levels in the lasing process. The simplest is the three - level system. Pumping lifts atoms from the ground state to a high - energy pump level. Then rapid decay to a metastable upper laser level occurs. Laser transition happens between this upper level and the ground state.
Three - level systems face big challenges in achieving population inversion. The lower laser level is the ground state, which naturally holds most atoms. This setup needs pumping more than half of all atoms to the excited state. It demands extremely high pump powers. Continuous operation becomes difficult at room temperature.
Four - level systems overcome these limits by adding an extra energy level between the upper laser level and the ground state. This setup keeps the lower laser level relatively unpopulated through fast decay to the ground state. So population inversion becomes much easier. Most practical laser systems — like neodymium - doped yttrium aluminum garnet (Nd:YAG) and other solid - state lasers — use four - level schemes for better efficiency.
The unique directional properties of laser light come from the optical resonator (also called the laser cavity). It has mirrors arranged to confine and amplify light through multiple passes through the gain medium. A typical laser resonator uses two mirrors: a highly reflective end mirror and an partially transmissive output coupler. These mirrors are precisely aligned to create a stable optical cavity. Only light propagating along the optical axis gets sustained amplification.
The resonator serves multiple critical roles beyond simple light confinement. It determines the spatial mode structure of the laser beam. It sets oscillation wavelengths through cavity resonance conditions. It provides the feedback needed for sustained laser oscillation. The geometry and dimensions of the resonator cavity determine the characteristics of the output beam. These include divergence, mode quality and frequency stability.

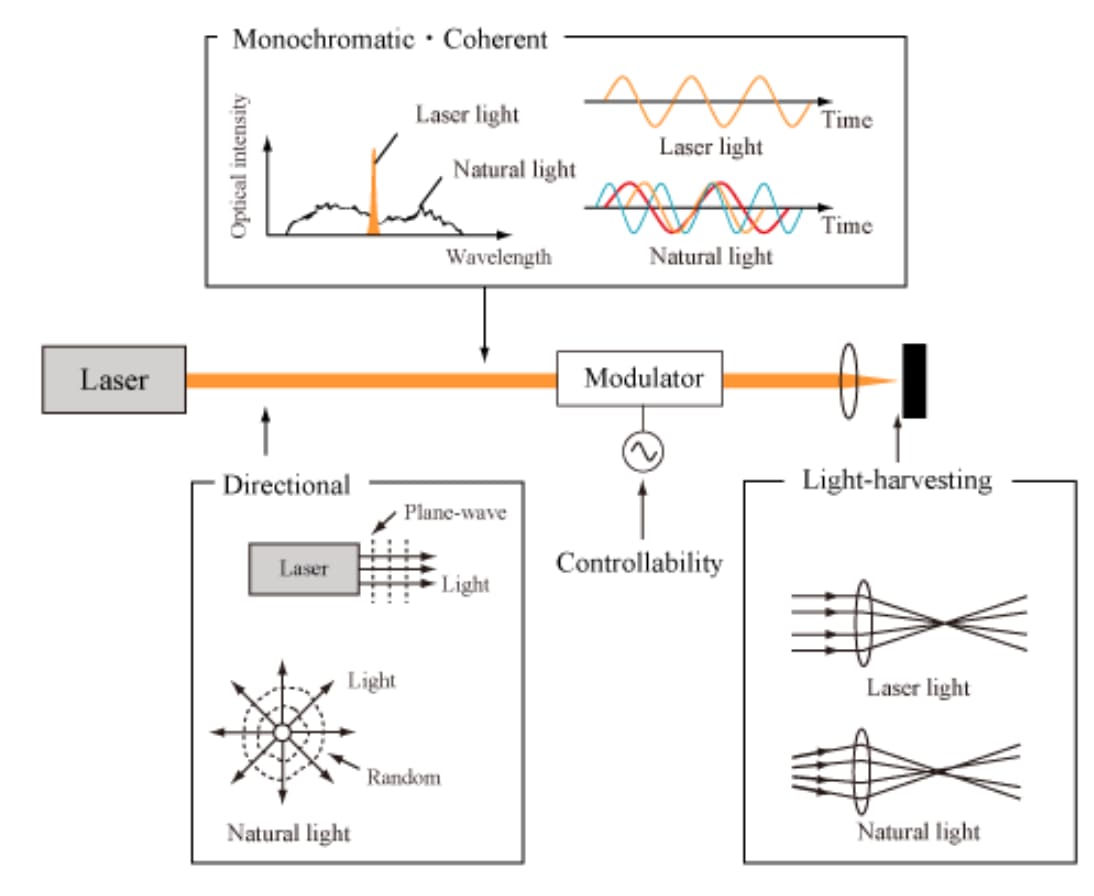

The exceptional directionality of laser light comes from selective amplification within the optical resonator. Spontaneous emission produces photons traveling in random directions. Only those photons aligned with the optical axis of the resonator cavity go through repeated amplification. Photons traveling at angles to the optical axis quickly escape the cavity and don’t contribute to the laser output.
This geometric selectivity, combined with the coherent nature of stimulated emission, produces laser beams with divergence angles much smaller than conventional light sources. For example, a typical laser with a 1.06 μm wavelength and a 3 mm beam diameter shows diffraction - limited divergence of around 0.022 degrees. Conventional flashlights have 25 degrees.
Solid - state lasers are the most diverse and widely used laser systems. They use crystalline or glass host materials doped with laser - active ions. The most common solid - state laser medium is neodymium - doped yttrium aluminum garnet (Nd:YAG). It operates at a 1064 nm wavelength. It can be efficiently pumped by semiconductor laser diodes. Other important solid - state materials include titanium - doped sapphire (for tunable laser apps), erbium - doped materials (for fiber optic communications) and ytterbium - doped crystals (for high - power apps).
The shift from lamp pumping to diode pumping revolutionized solid - state laser performance. It improved efficiency, lifetime and beam quality. It also reduced size and complexity. Diode - pumped solid - state lasers reach wall - plug efficiencies over 20%. They can operate continuously for tens of thousands of hours.
Semiconductor lasers (or laser diodes) work on different principles from ion - doped solid - state systems. These devices use direct bandgap semiconductors. Laser action happens through radiative recombination of electron - hole pairs at p - n junctions. The most common semiconductor laser materials are gallium arsenide (GaAs), indium gallium arsenide (InGaAs) and gallium nitride (GaN).
Semiconductor lasers have unique advantages: electrical pumping, compact size, high efficiency and the ability to directly modulate output through current control. These traits make them perfect for telecommunications, optical storage and as pump sources for other laser systems.
Optical pumping remains the main method for exciting solid - state laser media. The pump wavelength is carefully matched to strong absorption bands of laser - active ions. Modern diode - pumped systems achieve great efficiency by precisely matching the pump wavelength to absorption peaks. This minimizes heat generation and maximizes the fraction of pump energy turned into useful excitation.
The development of high - power semiconductor laser diodes enabled new pumping geometries. These include end - pumping and side - pumping configurations. Each is optimized for specific laser apps. End - pumping gives excellent spatial overlap between pump and laser modes for high beam quality. Side - pumping allows scaling to higher power levels.
Gas lasers usually use electrical pumping through gas discharges. High - voltage electric fields accelerate electrons. These electrons then excite gas atoms through inelastic collisions. This pumping method allows continuous wave operation in systems like helium - neon and carbon dioxide lasers. Chemical pumping, though less common, provides very high power densities. It uses exothermic chemical reactions to directly populate upper laser levels.
The unique properties of laser light — coherence, monochromaticity and high directionality — enable apps from precision manufacturing to fundamental scientific research. High - power solid - state lasers lead in industrial cutting and welding. Ultrafast titanium - sapphire lasers enable studies of chemical reactions on femtosecond timescales.
The development of fiber lasers opened new possibilities for high - power apps with good beam quality. Semiconductor lasers keep improving in power and efficiency for pumping apps and direct use in telecommunications.
Recent advances in laser technology include thin - disk lasers for kilowatt - class industrial apps, vertical - external - cavity surface - emitting lasers (VECSELs) for specialized uses and quantum cascade lasers for mid - infrared spectroscopy. These developments keep expanding app ranges and improving laser system performance across all categories.
The principles governing laser generation are a remarkable mix of quantum physics and precision engineering. They turn Einstein's theoretical insights into practical devices that revolutionized technology. From the fundamental need for population inversion to sophisticated optical resonators shaping laser beam properties, each part of a laser system has critical roles. They convert incoherent pump energy into coherent, directional laser light.
Understanding these principles gives a foundation for continued progress in laser technology. It enables new apps in fields from manufacturing and communications to scientific research and medical treatments. As laser technology evolves, the fundamental principles set over a century ago remain the core of all laser systems. They show the enduring power of scientific understanding to drive technological innovation.
