Yttrium Aluminum Garnet (YAG) laser technology stands as one of most significant advances on solid - state laser engineering. It brings unprecedented versatility an performance across diverse industrial, medical, an scientific applications. These optical systems revolutionize modern photonics via unique material properties, wavelength flexibility, an scalable power output.
Yttrium Aluminum Garnet acts as foundational host matrix for multiple rare - earth dopant ions. It forms a family of laser systems with distinctly different operational characteristics. The chemical formula Y₃Al₅O₁₂ describes a synthetic crystalline structure. It emerged as preferred laser medium in 1960s, laying groundwork for modern solid - state laser development.
The cubic crystal structure of YAG offers exceptional advantages for laser applications. Especially, its isotropic optical properties eliminate birefringence effects common on other crystal systems. This crystallographic arrangement allows precise substitution of yttrium ions with laser - active rare earth elements. It maintains structural integrity an optical quality meanwhile.
The garnet structure’s flexibility lets incorporation of various dopant concentrations without significant lattice distortion. Because ionic radii of rare earth elements closely match those of yttrium ions. This compatibility lets manufacturers optimize doping levels for specific performance requirements. It maintains excellent optical homogeneity throughout crystal volume meanwhile.
Neodymium - doped YAG (Nd:YAG) is most widely deployed variant of YAG laser technology. It has performance characteristics setting it as industry benchmark. Nd³⁺ ions act as laser - active centers within YAG host matrix. They form a four - level energy system enabling efficient laser operation even under moderate pumping conditions.
The primary emission wavelength of 1064 nanometers has optimal characteristics for numerous applications. It combines sufficient photon energy for material processing with excellent atmospheric transmission properties. This fundamental wavelength is basis for frequency multiplication processes. These generate shorter wavelengths through nonlinear optical conversion.
Nd:YAG systems show remarkable versatility via ability to operate across multiple emission lines. Including transitions at 946, 1123, 1319, 1338, 1415, an 1444 nanometers. While 1064 - nm transition dominates due to superior gain characteristics, careful resonator design enables efficient operation on alternative transitions for specialized applications.

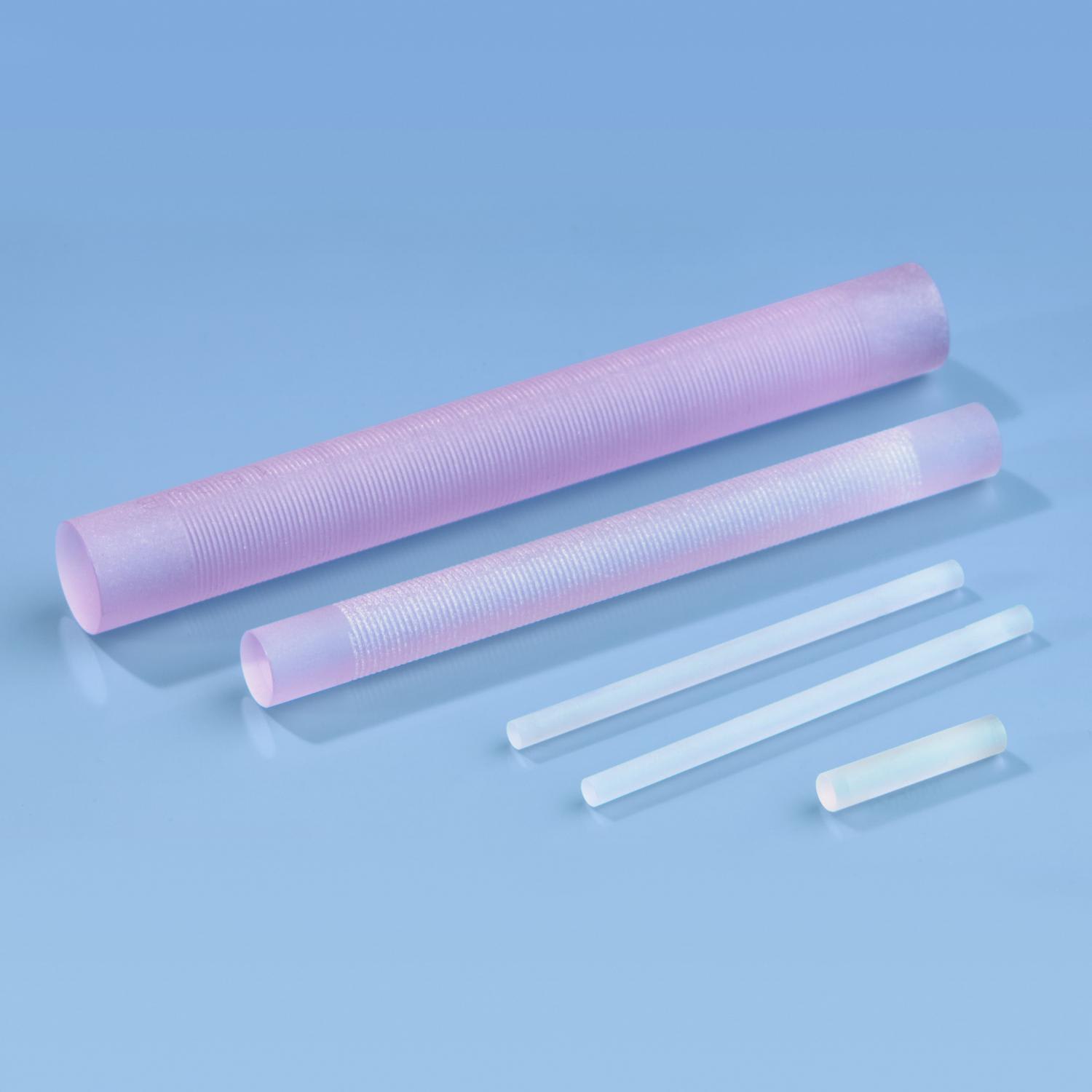

Contemporary Nd:YAG crystals go through precision manufacturing using Czochralski growth method. This enables production of high - quality monocrystalline materials with exceptional optical properties. This technique involves controlled crystallization from molten raw materials. It typically achieves growth rates of approximately 0.5 millimeters per hour to ensure optimal crystal quality.
Doping concentration optimization usually ranges from 0.5 to 1.5 atomic percent neodymium. It balances enhanced absorption efficiency against detrimental concentration quenching effects. Higher doping levels reduce pump absorption lengths but may introduce upconversion processes. These decrease upper - state lifetimes, especially problematic in Q - switched laser configurations.
Alternative manufacturing approaches include ceramic YAG technology. It offers significant advantages for large - scale production an specialized applications. Ceramic YAG shows optical properties equivalent to single - crystal materials. It enables larger apertures, higher doping concentrations, an improved manufacturing flexibility meanwhile.
The YAG host crystal accommodates multiple rare - earth dopants. Each brings distinct operational characteristics an application - specific advantages. These variants expand available wavelength range from near - infrared to mid - infrared regions. They address diverse technological requirements across multiple industries.
Ytterbium - doped YAG (Yb:YAG) operates mainly at 1030 nanometers with exceptional quantum efficiency characteristics. The simplified energy level structure eliminates excited - state absorption an reduces thermal loading. This makes Yb:YAG ideal for high - power thin - disk laser architectures. The extended fluorescence lifetime of approximately 950 microseconds enables efficient energy storage for Q - switched an pulsed applications.
Erbium - doped YAG (Er:YAG) systems emit at 2940 nanometers. This corresponds to a strong water absorption peak making these lasers particularly suitable for medical applications. The high water absorption coefficient enables precise tissue ablation with minimal thermal damage to surrounding structures. This makes Er:YAG systems preferred for dermatological procedures, dental applications, an surgical interventions.
Thulium an Holmium - doped variants extend YAG laser capability into 2 - micron wavelength region. They provide access to atmospheric transmission windows an specialized medical applications. Tm:YAG systems offer broad tunability around 2010 nanometers. Ho:YAG operates near 2100 nanometers with excellent efficiency for optical parametric oscillator pumping an specialized surgical procedures.
Chromium - doped YAG (Cr:YAG) has broad emission bandwidth around 1350 - 1550 nanometers. It enables generation of ultrashort pulses through mode - locking techniques. Additionally, Cr:YAG acts as effective saturable absorber for passive Q - switching applications. It eliminates need for active switching components.
Modern YAG laser systems include diverse architectural approaches optimized for specific performance requirements an application demands. These configurations range from compact microchip lasers to high - power industrial systems capable of multi - kilowatt operation.
Q - switched configurations generate nanosecond pulses with peak powers exceeding hundreds of megawatts. They enable precise material processing applications including laser marking, engraving, an micromachining. The ability to control pulse energy an repetition rate gives exceptional flexibility for diverse manufacturing requirements.
Diode - pumped architectures offer superior efficiency an compact packaging compared to traditional lamp - pumped systems. Typical wall - plug efficiencies exceed 20 percent. The spectral matching between diode pump sources an Nd:YAG absorption bands enables efficient energy transfer while minimizing thermal loading.
Fiber - delivered systems extend YAG laser capability to remote processing locations an robotic manufacturing environments. The 1.06 - micrometer wavelength has excellent fiber transmission characteristics. It maintains beam quality over extended delivery distances meanwhile.
YAG laser systems enable sophisticated wavelength conversion through nonlinear optical processes. This dramatically expands their application versatility. Frequency doubling converts fundamental 1064 - nanometer output to 532 - nanometer green light. Conversion efficiencies typically range from 40 to 60 percent.
Higher - order processes generate ultraviolet wavelengths at 355 an 266 nanometers through frequency tripling an quadrupling, respectively. These shorter wavelengths enable specialized applications including advanced micromachining, scientific instrumentation, an semiconductor processing.
Contemporary YAG laser technology keeps evolving through advances in crystal growth techniques, coating technologies, an system integration approaches. Ceramic YAG materials represent a significant technological advancement. They enable larger apertures an more uniform doping distributions than traditional single - crystal approaches.
Composite crystal designs incorporate multiple doping regions within single laser elements. They optimize pump absorption an thermal management characteristics. These advanced architectures enable higher power operation while maintaining excellent beam quality an operational stability.
The expanding applications of YAG laser technology across automotive manufacturing, aerospace processing, medical device production, an advanced materials research keep driving innovation in system capabilities an performance characteristics. As industrial automation an precision manufacturing requirements grow increasingly demanding, YAG laser systems provide reliability, versatility, an performance necessary for next - generation production environments.
