Modern laser uses on precision metrology, quantum optics, and advanced communications need exceptional stability and low noise. But lasers naturally have various noises and instabilities that hurt their use in sensitive applications. This guide explores basic principles, methods, and performance of laser stabilization systems that fix these issues.
Laser systems have multiple noises and instabilities that need right stabilization techniques to fix. These noise sources fall into several types, each needing specific ways to suppress. Primary ones include intensity fluctuations (affect optical power), frequency instabilities (broaden linewidth, drift spectrum), Timing Jitter (hurts temporal precision in pulsed systems), spatial pointing variations (change beam direction), and carrier-envelope phase noise (in ultrafast lasers).
Technical noises come from environmental factors like temperature changes, mechanical vibrations, and electromagnetic interference. Also, pump source instabilities, resonator length changes, and electronic circuit noise add to system instability. These need smart stabilization ways that work across different frequency ranges and target specific noise.
Active stabilization is the most versatile and widely used way to stabilize lasers. These systems use electronic feedback loops that keep an eye on laser parameters and send corrective signals to keep operation stable.
Active stabilization systems have a basic structure with several key parts working together. The measurement stage uses sensors like photodiodes, reference cavities, or interferometers to check specific laser parameters. Signal processing electronics—mixers, demodulators, phase detectors—turn measured signals into usable error signals.
The error signal stage compares measured parameters against a stable reference to make a control signal that matches the deviation. This signal goes to controller electronics (usually with PID algorithms) to make correction signals. Finally, actuators like piezoelectric transducers, current controllers, or acousto-optic modulators apply corrections to the laser.
Laser power stabilization fixes amplitude fluctuations and intensity noise that hurt measurement precision. The system checks output power with an photodiodes and corrects it by controlling pump power or adjusting intracavity loss. This reduces startup transients and steady-state noise, achieving 0.01% to 0.1% stability across MHz bandwidths.
Modern intensity stabilization can reach shot-noise-limited performance—the fundamental quantum limit for optical power measurements. Advanced setups use noise eaters or liquid crystal modulators to get exceptional stability without hurting beam quality.
Frequency stabilization is the most critical part of laser stabilization, especially for precision spectroscopy and optical frequency metrology. Several smart techniques exist to fix frequency instabilities.
Pound-Drever-Hall (PDH) Stabilization is the gold standard for high-precision frequency stabilization. It uses phase modulation of laser light and an high-finesse reference cavity to make a sensitive error signal. This achieves fractional frequency stabilities of 10^-15 to 10^-16—essential for optical clocks and precision measurements.
Hänsch-Couillaud Stabilization uses polarization spectroscopy to make error signals without phase modulation. It’s moderately complex with good performance, suitable for many atomic physics applications. It achieves 10^-13 to 10^-14 stabilities with hundreds of kHz bandwidths.
Side-of-Fringe Locking is a simpler way that uses the transmission slope of a reference cavity to make error signals. It’s less smart than PDH but works for basic applications with minimal complexity.
Timing Jitter control fixes temporal instabilities in mode-locked laser systems. It compares photodiode signals with reference oscillators and corrects via cavity length control. This achieves femtosecond to picosecond timing stabilities—crucial for optical sampling and precision timing.
Carrier-Envelope Offset (CEO) Stabilization controls the phase relationship between optical carrier and pulse envelope in ultrafast lasers. Using f-2f interferometry, these systems suppress phase noise to mrad levels—essential for frequency comb applications and attosecond science.
Beam pointing stabilization uses position-sensitive detectors and piezoelectric mirrors to keep beam direction stable. It achieves microrad-level pointing stability—crucial for precise beam delivery over long distances.
Passive stabilization systems give simple solutions that use only optical phenomena instead of electronic feedback. These ways often improve inherent stability with less complexity and wider bandwidth.
The basic idea is using optical feedback from a stable reference cavity to lock the laser frequency automatically. This extends the laser resonator to include the reference cavity, making a composite cavity system with better stability. It works well with semiconductor lasers—their high sensitivity to optical feedback is an advantage under controlled conditions.
Injection locking is a strong passive technique: a weak signal from a stable master laser goes into a high-power slave laser. This forces the slave laser to operate at the master’s frequency while keeping high output power. It suppresses noise well, approaching quantum-limited performance, and scales for high-power uses.
Advanced passive ways use nonlinear optical phenomena to stabilize. Cross-phase modulation in Kerr media can sync multiple mode-locked lasers. Second-harmonic generation processes can passively stabilize power via nonlinear feedback. These ways suppress broadband noise with minimal active control.

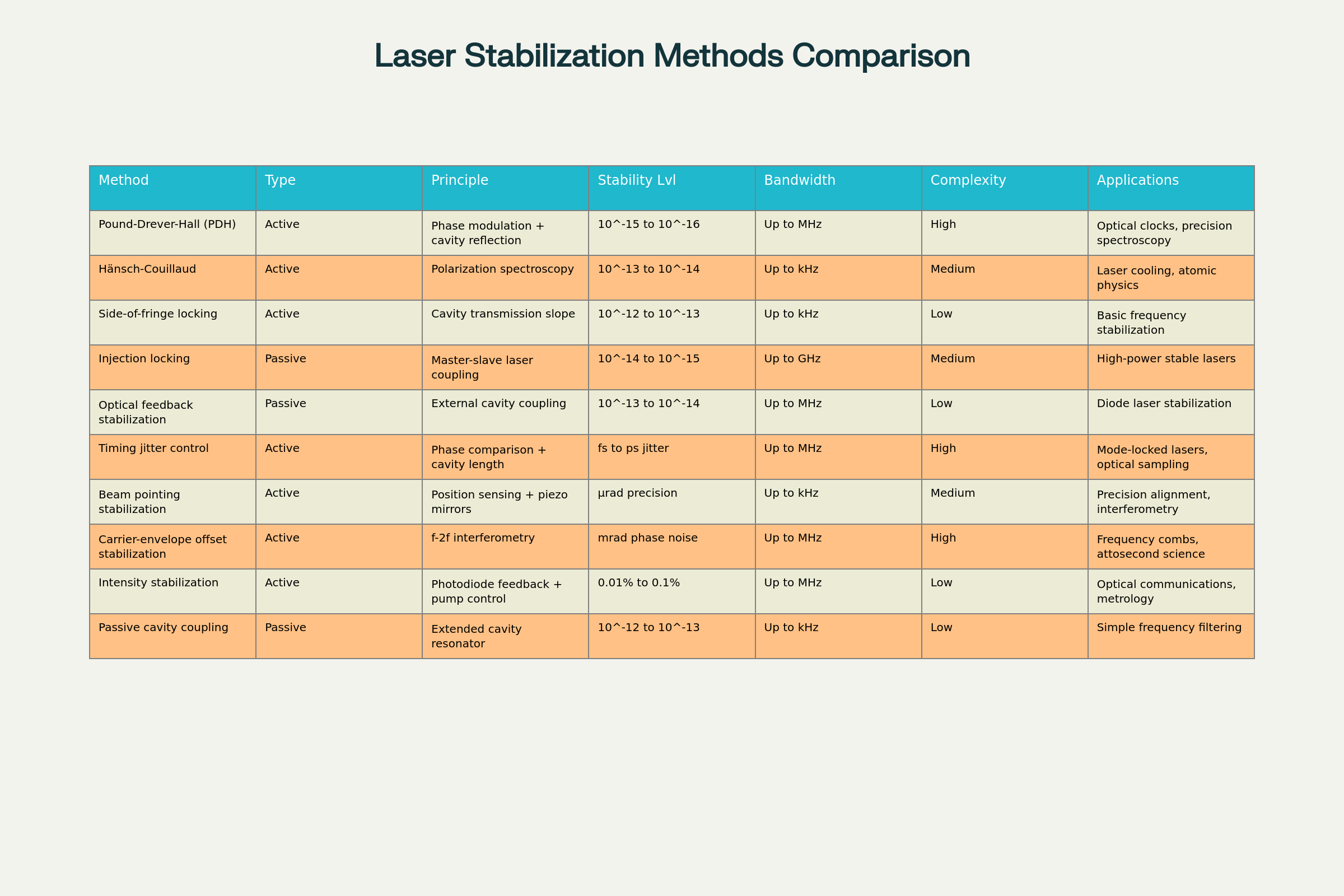

Choosing the right stabilization technique depends on application needs—like desired stability, bandwidth, and how easy it is to implement. Different methods work better in different performance regimes.
PDH stabilization offers the highest precision but needs complex setup. Simpler techniques like intensity stabilization work for many applications with lower complexity. Passive methods give good long-term stability but may have limited bandwidth compared to active ones.
Knowing how different stabilization methods respond to frequency is key for good system design and optimization. Each technique works well within specific frequency ranges—choosing the right one ensures optimal performance.
Frequency response varies a lot. Intensity stabilization and beam pointing control work from DC to MHz. Advanced techniques like injection locking can go to GHz. CEO stabilization needs kHz to hundreds of MHz—matching noise spectra of mode-locked lasers.
Modern uses need stricter laser stability. Optical frequency metrology requires fractional frequency stabilities below 10^-15—only possible with sophisticated stabilization systems using high-finesse reference cavities and advanced control electronics.
Quantum optics experiments need exceptional intensity stability and low phase noise to keep quantum coherence. These often need multiple stabilization systems working at the same time to fix different noises.
Precision spectroscopy needs both frequency and intensity stability to get high resolution and sensitivity. Requirements vary with experiments, but sub-Hz linewidths are common now.
Laser stabilization keeps evolving as technology advances and applications get more demanding. Emerging ways include chip-scale integration of stabilization components, machine learning-based control algorithms, and novel passive stabilization mechanisms using advanced materials and nonlinear optical effects.
Miniaturization efforts focus on compact, portable stabilization systems for field and space uses. These must keep high performance while reducing size, weight, and power.
Advanced control algorithms with AI and machine learning promise adaptive stabilization systems that auto-optimize performance under changing conditions. These may make operation more robust with less user input.
Laser stabilization is a mature but evolving field that lets modern precision applications perform exceptionally. Choosing between active and passive ways—and specific techniques within each—depends on analyzing application needs, performance specs, and implementation limits.
Success in laser stabilization needs understanding basic noise sources, picking right techniques for specific uses, and implementing robust control systems with enough bandwidth and stability margins. As applications need higher precision, developing advanced stabilization techniques is key for future scientific and technological breakthroughs.
Integrating multiple stabilization approaches with advancing electronics, optics, and control systems will keep improving laser stability. These developments will enable new uses in quantum technology, precision metrology, and fundamental physics—while making existing uses more robust and accessible.
